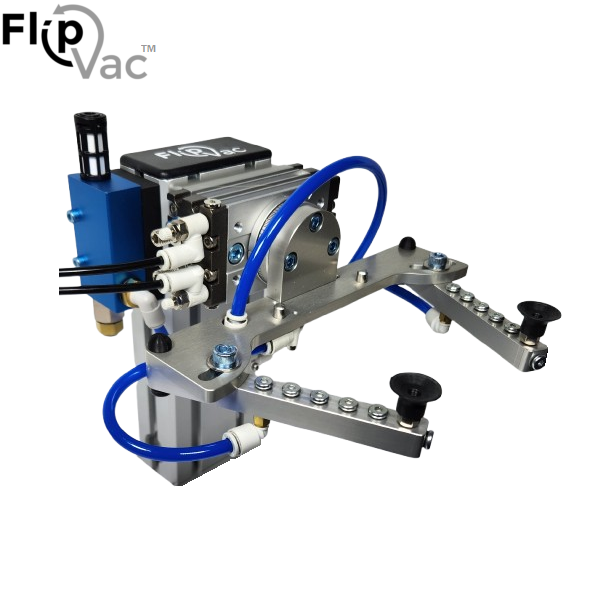

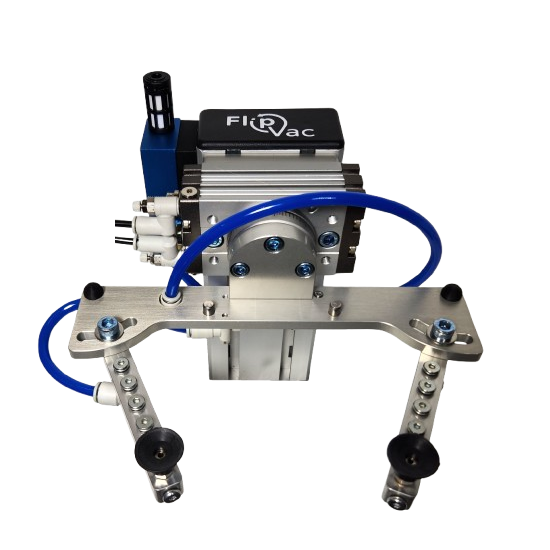

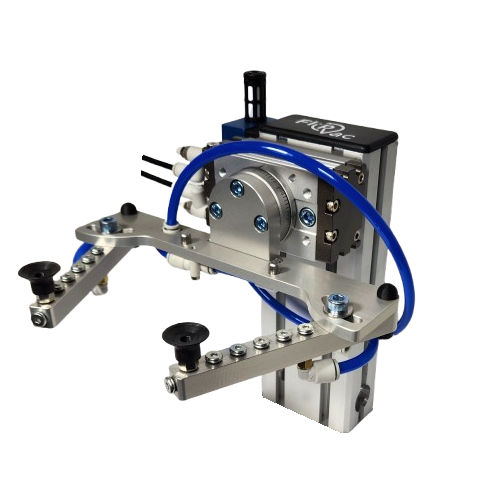

FlipVac™ Duo - Part Flipping Station

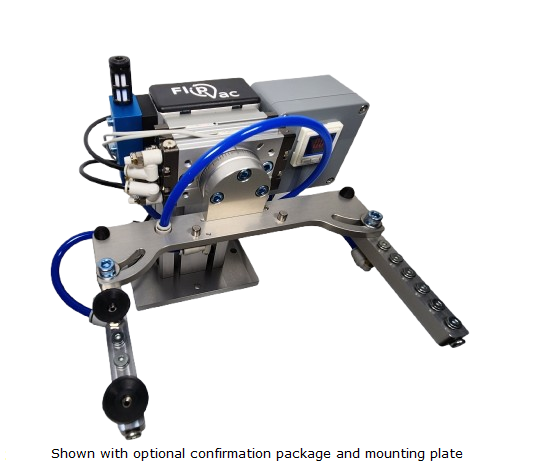

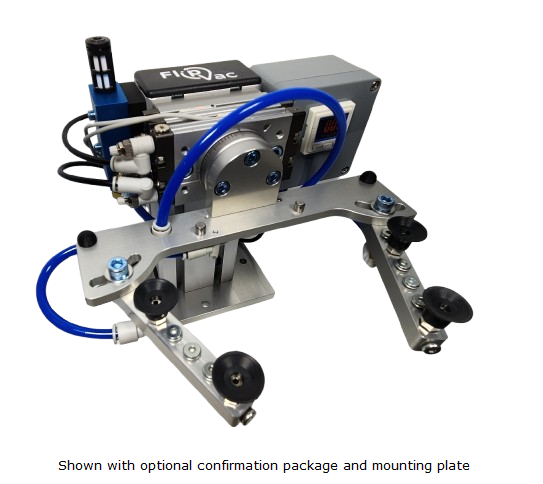

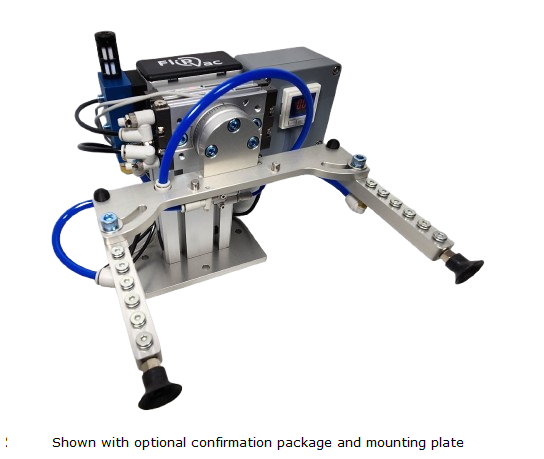

Enable your Cobot easily flip your CNC machined parts for the next operation with our dual-arm CNC part flipper. The FlipVac™ DUO has more versatility for larger parts and various vacuum cup configurations. It mounts to your 15- series or 40-series T-slot aluminum extrusion table with the included T-slot anchor fasteners or purchase the optional base plate for non T-slot tables. An optional confirmation package is available to ensure the part is secured before rotation, and rotation is complete before rotating/picking.

Includes two 20mm vacuum cups which can be easily changed for your unique parts. For vacuum cups specific to your application we recommend vacmotion.com for their large selection of high-quality and low-cost vacuum cups.

Features:

• Rigid design with 3lb capacity

• Multiple vacuum cup configurations

• 4080 series T-slot extrusion tower compatible with 8020, Faztek, Parco

  • Will mount to 40 or 15-series extrusion with the included anchor fasteners

  • Specify at checkout if you prefer a 1530 extrusion tower (may extend ship date)

• Vacuum generator

• Flow controls for smooth, controlled rotation

• Typically ships in 3-5 business days

Add-ons:

• Part confirmation package (NPN or PNP)

• Mounting base plate
